2 bhk duplex house plan design

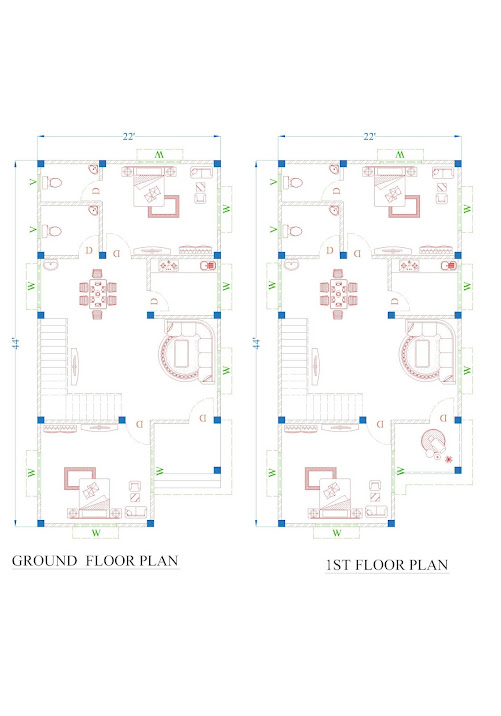

Ground floor plan furniture layout
first floor plan furniture layout

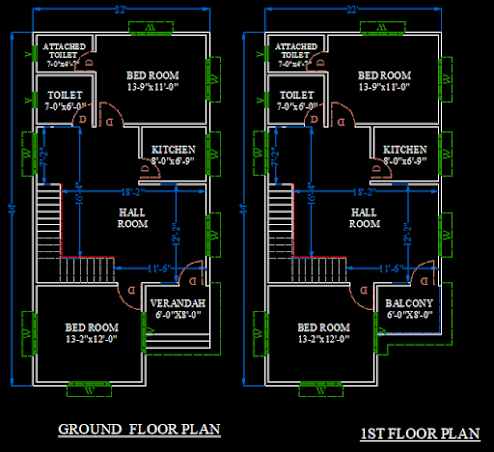

22 x 44 house plan design
2 bed rooms ground floor house design
2 bed rooms first floor house design
AREA=968 SQUARE FT.
2BHK GROUND FLOOR , 1ST FLOOR 2BHK
EXTERNAL & INTERNALWALL=5″
COLUMN =10″x10″

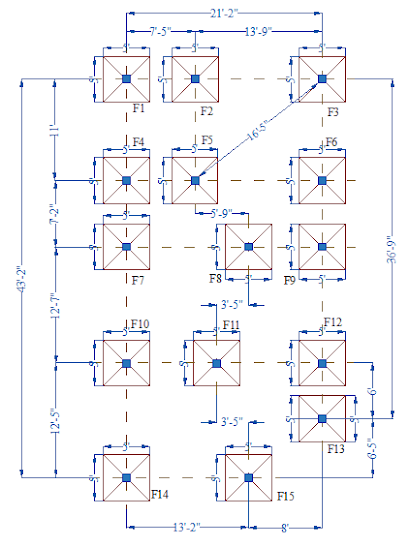

Foundation Layout plan
COLUMN SIZE = 10″ X 10″
FOUNDATION SIZE = 5′-0″ X5′-0″ X 5′-0″
TIE BEAM SIZE = 10″ X 12″ , 5″ X 10″
COLUMN LAYOUT PLAN
BEAM LAYOUT PLAN
COLUMN SIZE = 10″ X 10″
FOUNDATION SIZE = 5′-0″ X5′-0″ X 5′-0″
TIE BEAM SIZE = 10″ X 12″ , 5″ X 10″
2 room planner with dimensions
building drawing a room layout

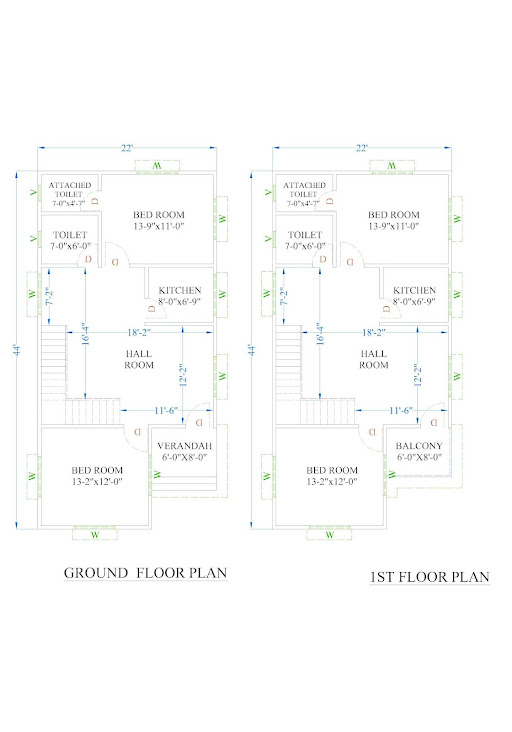

2 bedroom layout plan
AREA=968 SQUARE FT.
2BHK GROUND FLOOR , 1ST FLOOR 2BHK
EXTERNAL & INTERNALWALL=5″
COLUMN =10″x10″

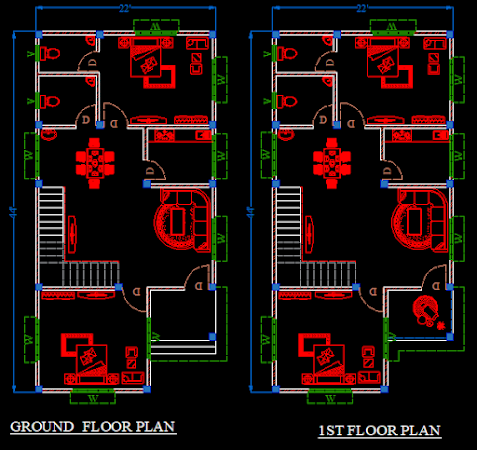

furniture layout plan
interior design
