34 x 40 house plan design
34 x 40 furniture layout plan
AREA=1350 SQUARE FT.(GROUND FLOOR PLAN)
=1350 SQUARE FT.(1STFLOOR PLAN)

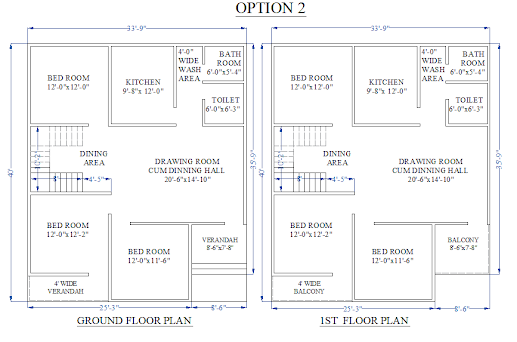

34 x 40 Duplex house plan design
3 bhk house plan design
3 BHK GROUND AND1ST FLOOR AND WITH STAIR CASE
Option -02
34 x 40 Duplex house plan design
3 bhk house plan design
3 BHK GROUND AND1ST FLOOR AND WITH STAIR CASE
Option- 01
3 bhk furniture layout plan with duplex house design

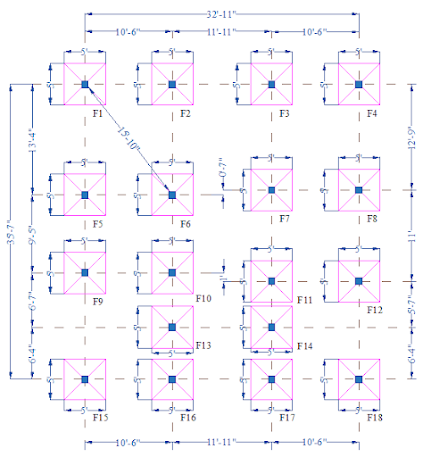

foundation layout plan
COLUMN SIZE = 10″ X 10″
FOUNDATION SIZE = 5′-0″ X5′-0″ X 5′-0″
TIE BEAM SIZE = 10″ X 12″ , 5″ X 10″
Details of foundation

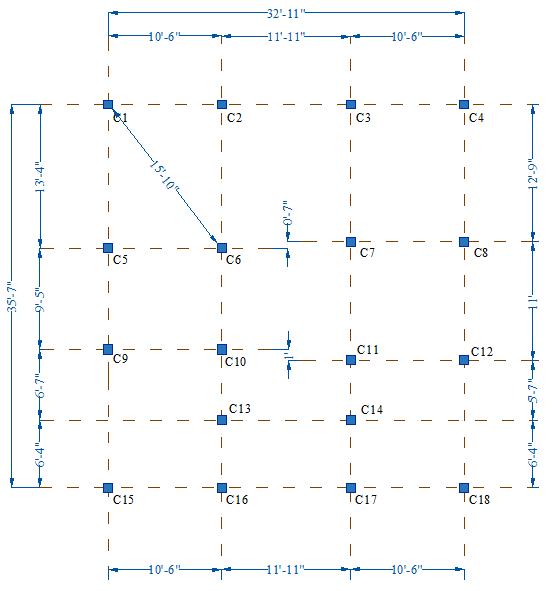

column layout plan
beam slab details
beam layout plan
